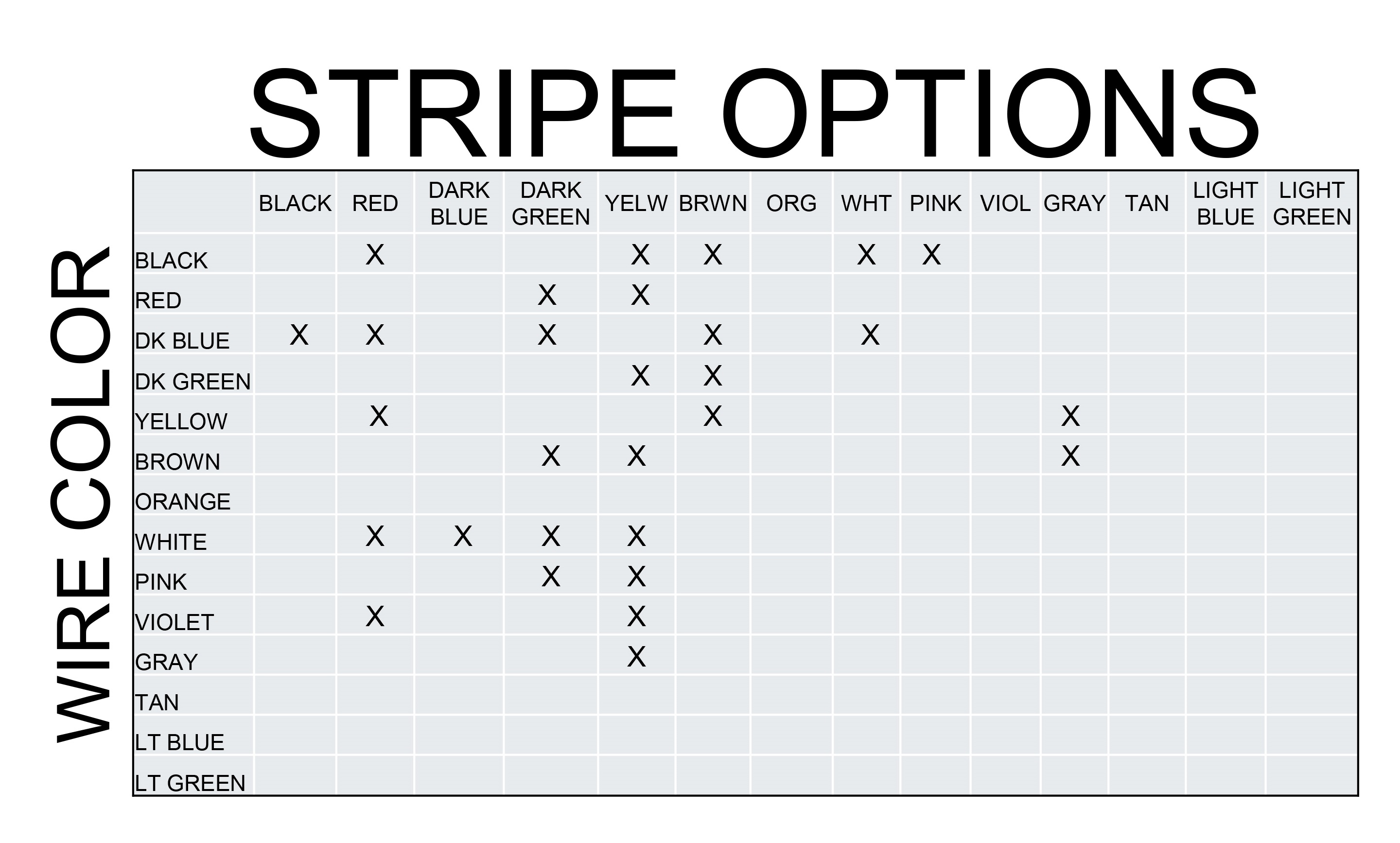

18 TXL Striped Wire - Choose Color & Stripe

• Wire Gauge: 18 Gauge (AWG)
• Nominal Wire Diameter: 0.082"
• Nominal Conductor Diameter: 0.048" (copper conductor only)
• Conductor: 16 or 19 Strands - Stranded Bare Copper (pure copper - no aluminum) - NOTE: We stock both 16 & 19 Strand, but mostly 16 Strand so if it's important to your project ask before purchasing.
• Insulation Material: Cross-linked polyethylene (XLPE)
• Temperature Rating: -40°C to +125°C (-40°F to +257°F)
• Absolute Voltage Rating (Max): 60V DC or 25V AC
• Meets SAE J1128 Specification
• Weight: 6.60 LBS per 1,000 FT

MADE IN USA

TXL wire is a high-quality automotive wire known for its superior insulation and durability. Its properties include high-temperature resistance up to 125°C (257°F), thin wall insulation, and excellent abrasion resistance. TXL wire is commonly used in various industries and applications, including:

• Automotive
• Marine
• Aerospace
• Industrial machinery
• Agricultural equipment

Benefits of TXL wire over other types of wire include:

• Higher temperature tolerance for demanding environments
• Thinner insulation for easier routing and space efficiency - high flexibility for easy wire routing
• Enhanced durability and abrasion resistance
• Superior chemical resistance, ensuring longevity
