20 GXL Striped Wire - Choose Color & Stripe

20 GXL Striped Wire - Choose Color & Stripe

Alternative Views:


Price per Foot: $0.40
(Minimum order):  10


SKU: CC-GXL20-STRIPED

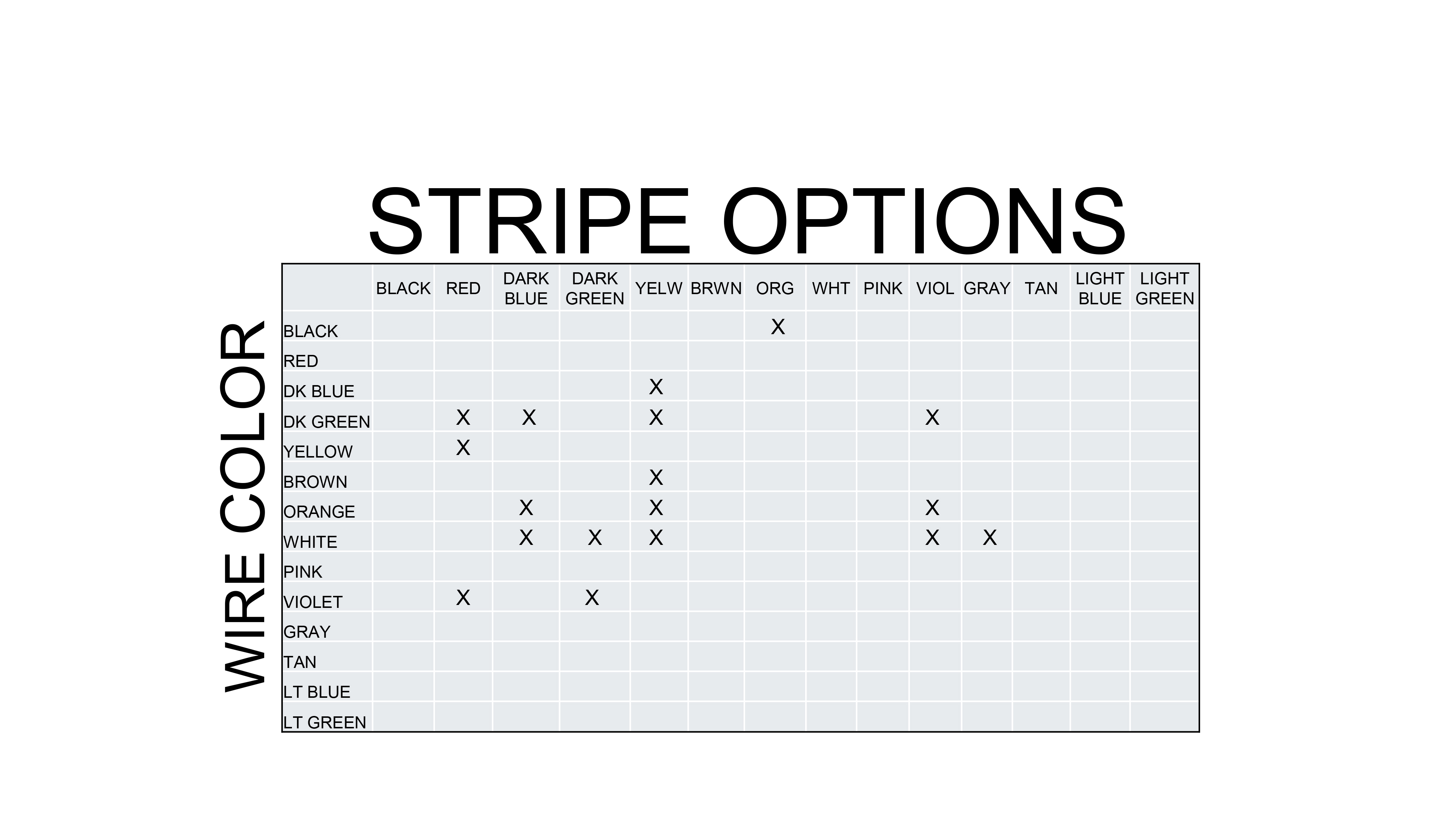

Base Wire Color


Stripe Wire Color



Quantity:
Description

SPECIFICATIONS FOR OUR USA MADE 20 GAUGE GXL WIRE
  • Wire Gauge: 20 Gauge (AWG)
  • Nominal Wire Diameter: 0.084"
  • Nominal Conductor Diameter: 0.037" (copper conductor only)
  • Conductor: 7 Strands - Stranded Bare Copper (pure copper - no aluminum)
  • Insulation Material: Cross-linked polyethylene (XLPE)
  • Temperature Rating: -40°C to +125°C (-40°F to +257°F)
  • Absolute Voltage Rating (Max): 60V DC or 25V AC
  • Meets SAE J1128 Specification
  • Weight: 5.56 LBS per 1,000 FT
MADE IN USA


GXL wire is a high-quality automotive wire known for its superior insulation and durability. Its properties include high-temperature resistance up to 125°C (257°F), thin wall insulation, and excellent abrasion resistance. GXL wire is commonly used in various industries and applications, including:

  • Automotive
  • Marine
  • Aerospace
  • Industrial machinery
  • Agricultural equipment

Benefits of GXL wire over other types of wire include:

  • Higher temperature tolerance for demanding environments
  • Thinner insulation for easier routing and space efficiency - high flexibility for easy wire routing
  • Enhanced durability and abrasion resistance
  • Superior chemical resistance, ensuring longevity
These features make GXL wire the preferred choice for applications requiring reliable and long-lasting electrical connections in harsh conditions.
